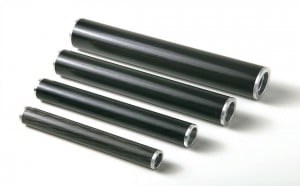

STANDARD CARBON FIBERS ROLLERS

Thanks to the pultrusion and pull-winding processes, we can offer a complete range of light industrial carbon fibre tube rollers with bending modulus between 110 and 300 Gpa.

portfolio-item-2

This continuous composite material profile process means that we can offer precision standard rollers with a optimal price to performance ratio.

Technical details | STANDARD HR carbon fibers roller*
DiametersWeight kg/m
30,5X27,50,16
32X290,22
40X360,36
50X460,49
55X510,55
55X451,2
60X560,7
80X741,14
100X941,41
120X1122,24
150X1412,87
160X1504
170X1594,5
* smaller diameters on request
TECHNICAL AND MECHANICAL CHARACTERISTICS
BENDING MODULUS100-110 Gpa
THERMAL EXPANSION COEFFICIENT0,5.10-6/°C
ELECTRICAL RESISTANCE30 – 50 µm
BARCOL HARDNESS75
MAX OPERATING TEMPERATURE80/100°C


SPECIAL CARBON FIBERS ROLLER


For those industrial applications where rollers are the heart of the manufacturing process, such as printing and converting, we can manufacture custom-made high-performance rollers.

The rollers are all made using carbon fibre tubes, with a carefully developed internal structure conceived to ensure extremely high stiffness, high precision and large sizes.

|||

Characteristics of the special rollers

The main requirements for improving the productivity of industrial machinery and equipment are:

  • higher width
  • higher speed
  • higher flexibility

The special rollers are manufactured following a patented process called K1, which enables us to also produce large size tubes, by unit, and design exactly to meet Customer’s specifications:

  • Up to dia 500 mm
  • Up to 10 mt.
  • Thickness until 25 mm
  • Modulus: from 150 GPa to 400 GPa
